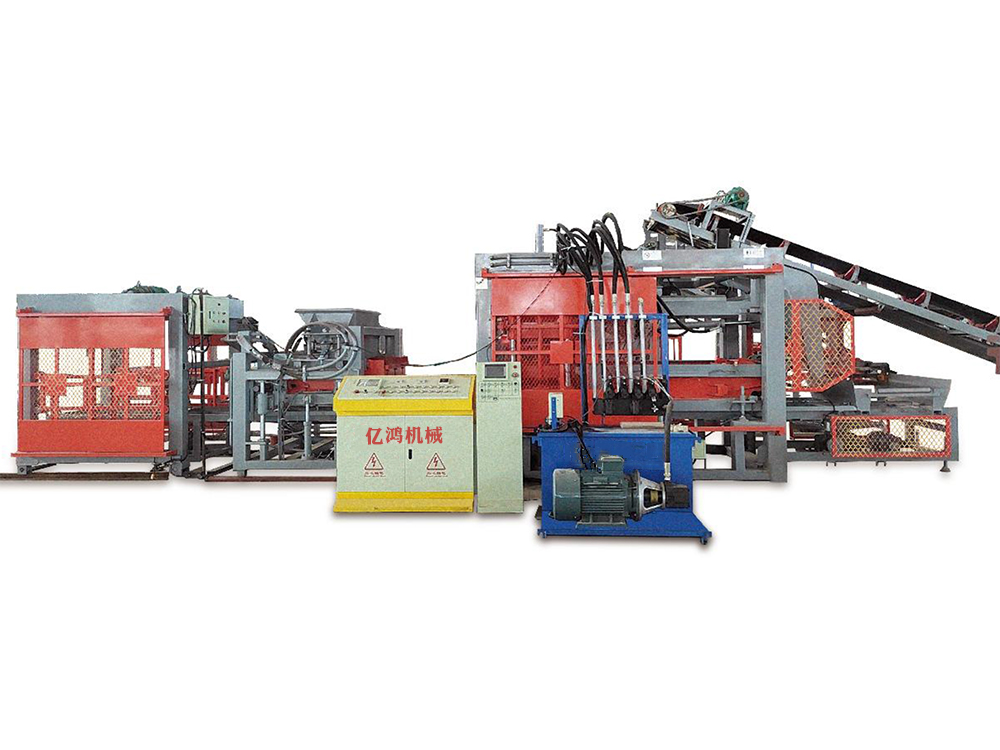

18-15 Completely Automatic Brick Making Machine(PLC Control)
Back
1.Main features:
(1) The equipment integrates the advantages of various types of machines at home and abroad, vigorously introduces its advanced production technology and design concept, improves the technical content of the whole machine, and increases the market recognition and applicability.
(2) Powerful control system, realizing electromechanical and hydraulic integrated control, making the whole machine run quickly; With self diagnosis and guidance function, it can monitor and display the system operation status in real time, stop the machine in time and give an alarm prompt in case of fault; You can also join our "cloud service" system to realize remote operation, as if technicians were present!
(3) Imported PLC programmable controller, color touch screen, more humanized operation interface, parameter guidance and other practical functions are selected to allow users to easily realize man-machine dialogue.
(4) Imported hydraulic technology from Japan and Taiwan, double hydraulic drive system, stronger vibration, shorter molding cycle and higher product strength.
(5) The frame of the forming machine is made of high-strength section steel and welded by special process. The appearance is sprayed with special anti-corrosion paint, which makes the structure of the whole machine stable and has good anti-corrosion effect, and enhances the service life of the whole machine.
(6) The distributor adopts the sensing and hydraulic proportional drive technology, and the distribution is fast and uniform, which is particularly beneficial to the production of thin-wall porous bricks.
(7) The vibrator is driven by variable frequency motor, with adjustable frequency and amplitude. It can obtain good vibration effect for bricks with different raw materials.
(8) After heat treatment and carburizing process, the wear resistance of the mold is improved and the service life is longer.
2.Technical parameters:
3.Producing capacity table:
(1) The equipment integrates the advantages of various types of machines at home and abroad, vigorously introduces its advanced production technology and design concept, improves the technical content of the whole machine, and increases the market recognition and applicability.
(2) Powerful control system, realizing electromechanical and hydraulic integrated control, making the whole machine run quickly; With self diagnosis and guidance function, it can monitor and display the system operation status in real time, stop the machine in time and give an alarm prompt in case of fault; You can also join our "cloud service" system to realize remote operation, as if technicians were present!
(3) Imported PLC programmable controller, color touch screen, more humanized operation interface, parameter guidance and other practical functions are selected to allow users to easily realize man-machine dialogue.
(4) Imported hydraulic technology from Japan and Taiwan, double hydraulic drive system, stronger vibration, shorter molding cycle and higher product strength.
(5) The frame of the forming machine is made of high-strength section steel and welded by special process. The appearance is sprayed with special anti-corrosion paint, which makes the structure of the whole machine stable and has good anti-corrosion effect, and enhances the service life of the whole machine.
(6) The distributor adopts the sensing and hydraulic proportional drive technology, and the distribution is fast and uniform, which is particularly beneficial to the production of thin-wall porous bricks.
(7) The vibrator is driven by variable frequency motor, with adjustable frequency and amplitude. It can obtain good vibration effect for bricks with different raw materials.
(8) After heat treatment and carburizing process, the wear resistance of the mold is improved and the service life is longer.
2.Technical parameters:
|
Dimension
|
7530×2240×2935(mm)
|
Molding method
|
Platform mould combined vibration
|
|||||
|
Vibration frequency
|
3800-4500（r/min）
|
Pallet size
|
1450×1350×30（mm）
|
|||||
|
Cycle time
|
15-30(s)
|
Exciting force
|
220KN
|
|||||
|
Power
|
92.5(kw) |
|
||||||
3.Producing capacity table:
|
Brick size
|
QTY / mould
|
Cycle time
|
Brick sample
|
|
390×190×190mm
|
18 Pieces
|
15~22S
|
|
|
240×50×115mm
|
105 Pieces
|
12~18S
|
|
|
240×90×115mm
|
50 Pieces
|
15~18S
|
|
